Your engine code appears in the list below: which Ford C-Max gearbox does it correspond to?

The C-Max spans 2003 to 2019 and seven distinct engine variants, each paired with its own engine codes. This code, stamped on the block, is the only reliable way to avoid a reference error: the same engine capacity can come with either a 5- or 6-speed gearbox depending on the year and code. The 1.6 TDCi diesels (G8DA, HHDA, T1DA, T3DA) are fitted with either a 5-speed manual or a 6-speed — two parts that are not interchangeable. The 1.5 TDCi (XWDA, XWDB, XWDC, XWDD), introduced as a replacement on the second-generation C-Max, is fitted exclusively with the 6-speed.

Petrol: three engine code families, three different gearboxes

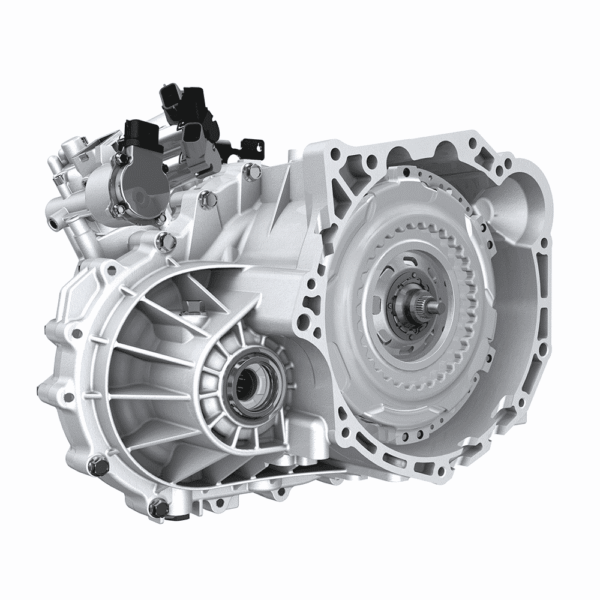

On the petrol side, the configurations are equally varied. Both the naturally aspirated 1.6 (HWDA, HXDA, SIDA) and the 1.6 EcoBoost (JQDA, JQDB) are fitted with a 6-speed manual, but the gearbox references are not the same between the two engine variants. The 3-cylinder 1.0 EcoBoost (M1DA, M1DD, M2DA, SFJA, SFJB) is also a 6-speed. The 1.6 Ti (PNDA / PNDD) and the 1.8 (QQDA, QQDB) retain a 5-speed gearbox, as fitted on the earlier years of the model.

Identifying the correct part before ordering

With 21 engine codes listed across this range, checking the engine code is essential before taking any further steps. OEM references such as 6M5R-7002-YC or AV6R-7002-HK illustrate the breadth of variants: a gearbox reference can differ according to the engine code even when the engine capacity and year appear identical. Locate your engine code on the block before browsing the product listings in this collection.
